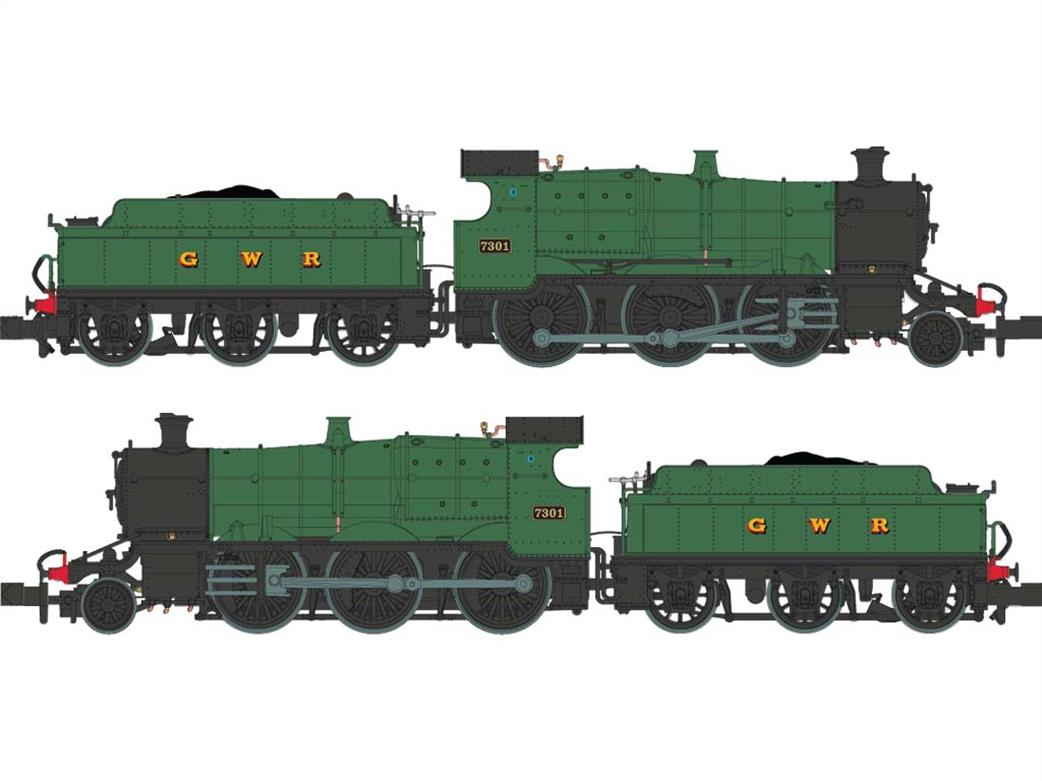

Dapol N 2S-043-003 GWR 7301 43xx Class 2-6-0 Mogul Green Lettered G W R

£156.00
MRP £183.60

Must be ordered - delivery as soon as possible.
(Product Ref 119619)
Cookies are disabled.
To place an order please call 01453 377030
Have a question about this product? Let us know

The series of models being manufactured by Dapol are to the later Churchward build from numbers 5390 through to 7321, constructed between 1920 and 1923 with the final eight (6362-6369) in 1925 under Collett. These Collett locomotives had outside cylinder steam pipes fitted from new, whilst this feature was added to the majority of the earlier batch from the late 1940s to the early 1950s. The last to be withdrawn was 6395 on 21-11-1964.

General Specification

Many original GA drawings were used in the development of these accurate and authentic models.
The locomotive has a diecast chassis with a coreless motor driving the rear wheels. To add compensation the centre driving wheels are sprung, the front pony truck is also sprung and operates on a cam so the model will negotiate R2 curves with ease.
To portray these locomotives over their lifetime many details have been drawn up as follows:

Body

  • Diecast boiler
  • Smokebox with/without cylinder steam pipes
  • Diecast footplate
  • Churchward Taper buffers
  • Collett Straight Shank buffers
  • Tall vacuum pipe for early version
  • Lower vacuum pipe for later period
  • Tall safety valve cover
  • Short safety valve cover
  • Smoke box top mounted lamp bracket
  • Smoke box door mounted lamp bracket for B.R. period
  • Smoke box number plate for B.R. period
  • Highly detailed cab interior
Chassis
  • Diecast chassis – split frames for live bearing pick-up
  • Blackened nickel plated diecast driving wheels
  • Brass bearings
  • Plastic keeper plate with brake shoe/linkage details
  • Sprung centre driving wheels
  • Wheels to NMRA standard
Electrical
  • Pickup from loco driving wheels and tender
  • Coreless motor
  • Tender body to be easily removable
  • Space for sugar cube speaker in tender
  • DCC Ready with provision for a NEXT-18 Decoder in the tender
  • ocomotive to tender with electrical connections for motor and locomotive pick-up via pin and socket vertically mounted under the cab
