Bachmann 36-556RA 6-Pin Right-Angle DCC Locomotive Decoder 2 Functions

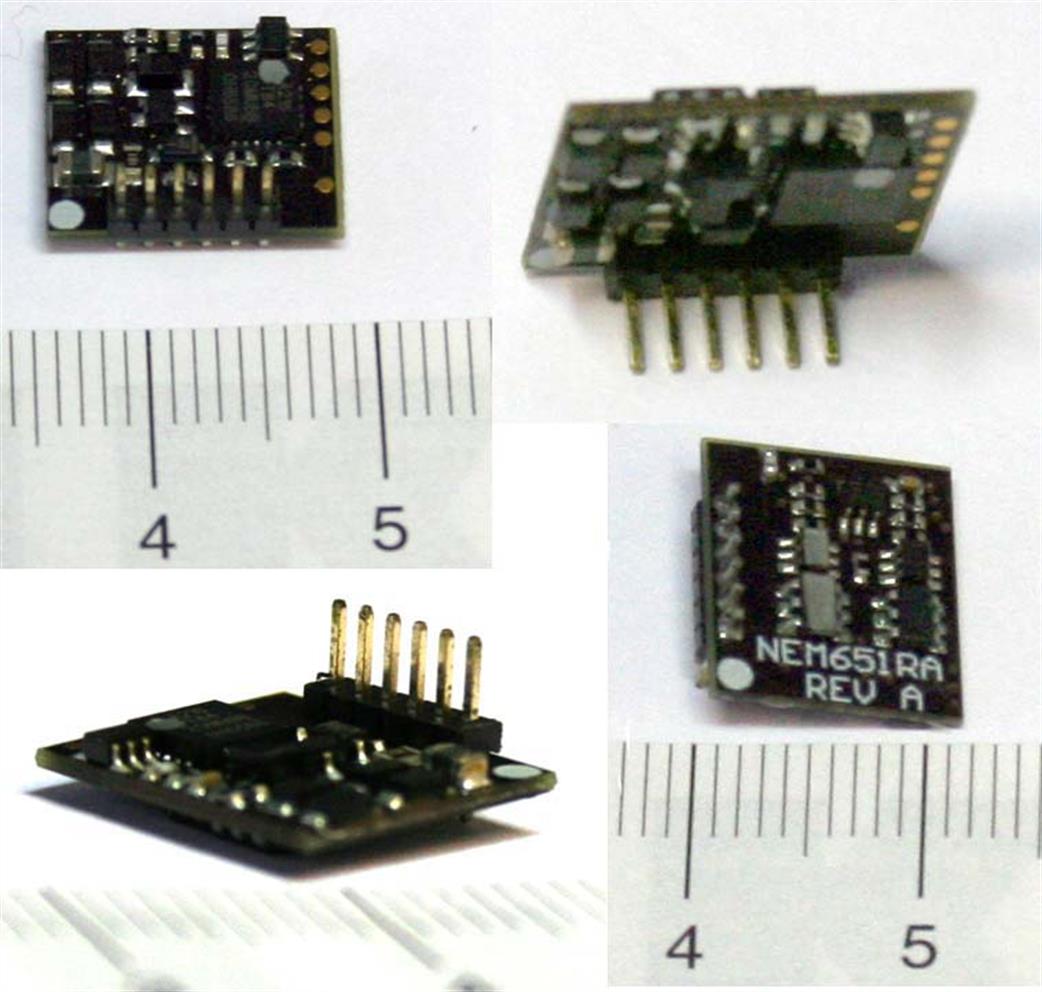

Bachmanns 36-556RA decoder is a Soundtraxx product fitted with a 6-pin plug-in connector mounted at right angles to the decoder board and projecting at one end. This allows the chassis designers a much wider choice of mounting locations, for example the decoder can be fitted vertically inside the cab of a steam locomotive
Decoder measures 14.5mm x 9.5mm x 3.5mm

Based on the high quality and highly capable Soundtraxx MC1 decoder a wide range of user configurable CVs allow the decoder to be tuned and matched to most model railway locomotive motors. A continuous rating of 1 amp is available, making the decoder suitable for N, OO/HO and even small O gauge locomotives. Two function outputs are available with a 100mA maximum load on each.
Supports 14, 28 and 128 speed steps with back EMF regulation and 15.6kHz PWM speed control, short and long (extended) addressing, advanced consist addressing (for double-heading and multiple units) , adjustable acceleration/deceleration rates. The decoder has 15 pre-set speed curves, allowing fine control speed ranges to be adjusted and supports user-defined speed curves with 28 reference points.
