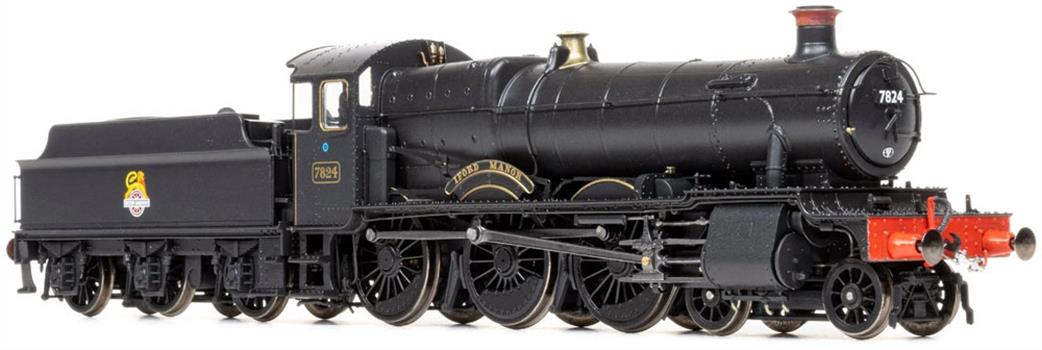

Accurascale OO ACC2510-7824 BR 7824 Ilford Manor Collett Manor Class 4-6-0 BR Plain Black Large Early Emblem

MRP £169.99
Warehouse: 1
Fast delivery from Warehouse.
(Product Ref 117343)
Cookies are disabled.
To place an order please call 01453 377030
Have a question about this product? Let us know

7824 – ‘Iford Manor '

  • BR Unlined Black with large Early Crest
  • Redraughted Chimney
  • Flush Tender Body
  • Narrow hornplates
Completed in December 1950 7824 Ilford Manor was sent to Worcester, one of the main division sheds and in February 1951 the new engine was allocated to Gloucester Horton Road. The engine did not stay long in the Worcester division, being reallocated to Plymouth Laira in August 1952 where 7824 remained, with a short transfer to Newton Abbot from July 1954 to January 1955 (possibly including attention in the works at Newton Abbot) until moved to Shrewsbury in October 1955. A year later in December 1956 7824 was back at Laira, then Penzance from January 1957 until July when the engine moved to West Wales at Carmarthen.
As an overhaul is likely after 7-8 years in service 7824 was probably repainted into a later British Railways livery by now, or around the time of returning to Newton Abbot in July 1959, before a more permanent move to the West Midlands and Tyseley shed in September that year. Withdrawn at Oxley in November 1964 7824 was scrapped by Cashmores.

Common Features:

  • Highly-detailed OO gauge model, 1:76.2 scale on 16.5mm track
  • Based on 3D scan of 7808 Cookham Manor and full works drawings provided by Great Western Society, Didcot
  • Surveys undertaken with assistance of Erlestoke Manor Fund, Dinmore Manor Loco Ltd and Tyseley Locomotive Works
  • Smokebox and chimney correctly represents as-built GWR condition or post-1952 BR redraughting
  • Fully-detailed cab interior with many separate parts
  • Die-cast metal chassis, running plate and body
  • Scale width wire handrails
  • Etched metal/plastic and lost wax detail parts, incl. grab handles, steps, drain cocks, etc
  • Etched metal pre-painted name and numberplates
  • Etched metal "Cambrian Coast Express" and "Pembroke Coast Express" headboards
  • High-fidelity dummy screw couplings
  • Fully sprung metal buffers and factory-installed pipework
  • Tapered or straight buffer housings where applicable
  • Brake blocks in line with wheels
  • Front mini-tension lock coupler can be replaced by accurate front pony truck moulding

Tender Details:

  • Churchward 3,500 gal tender with numerous variations including riveted and flush sides, narrow or wide hornplates, three different styles of spring hanger and underframe-mounted water scoop
  • Fully sprung metal buffers, factory-installed pipework and high fidelity dummy screw couplings
  • Early tapered, tapered or straight buffer housings where applicable
  • Optional overhead warning plate bracket on late-BR examples
  • Kinetic NEM coupler mounts on tender at correct height with mini-tension-lock couplers
  • DCC decoder socket in tender (tender roof accessible by lift out section secured by magnets)
  • Choice of lift out sections: empty or simulated ‘coal’ load

DCC / Electronic Features:

  • Very high-quality 3-pole motor with flywheel, low starting voltage and smooth power delivery
  • DCC ready [21-Pin MTC Socket in tender] or factory-installed DCC Sound options
  • DCC Sound locomotives have speaker mounted in smokebox and dual speakers in tender
  • PowerPack capacitor bank for uninterrupted power and sound
  • Flickering firebox light (synchronised with sound on DCC installed models)
  • Electrical pickup from all tender and locomotive driving wheels

Traction Features:

  • Minimum Radius 438mm (2nd Radius Set-track)
  • Die-cast metal chassis, running plate and body with sprung centre driving axle
  • Metal Helical Gear box for maximum performance and slow speed running
  • Gearing arranged so locomotive can achieve a scale top speed of 90 mph (145 km/h)
  • RP25-110 profile OO gauge wheels
