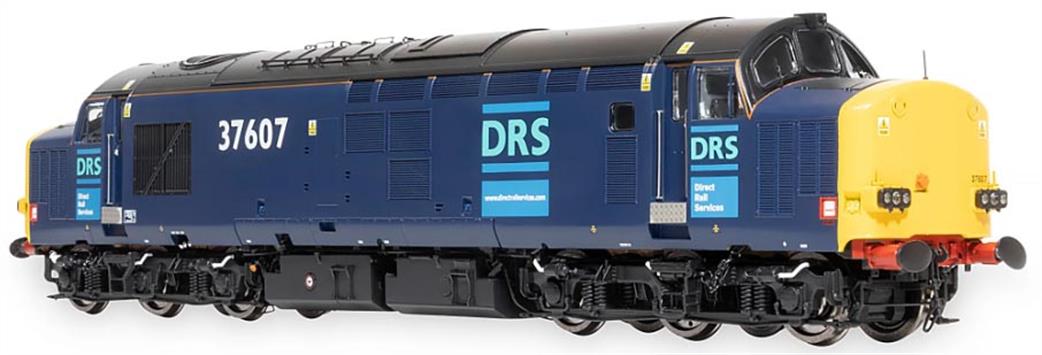

Class 37/6 - 37607
- Direct Rail Services blue with original logos
- 'Flush' nose with no plated door and WIPAC light clusters
- DRS multiple-working socket on nose
- Cab windscreen-mounted top headlight
- Nose aerial
- 'Split' style nose grilles
- Cutaway bufferbeam cowling with oval buffers
- Class 37/6 bufferbeam configuration with air/control pipes only
- Toughened windscreens, revised DRS control desk and centre cab partition
- Welded roof with plated boiler exhaust and no cab roof vent
- Cast (Class 50 style) bogies
- Underslung fuel tank with converted water to long range fuel tank
- Late EE cantrail grilles
- Plated window one side
- Optional miniature snowploughs
- Single cab door kickplate
Without doubt the most successful diesel design of the BR era and a strong contender to be called the greatest locomotive in British railway history, the definitive model of the English Electric Type 3 / Class 37 has been a long time coming. 309 examples of this mixed-traffic 1,750hp Co-Co class were built by English Electric and Robert Stephenson & Hawthorn between 1960 and 1965 to two basic designs, split and centre headcode. They could be found systemwide leading all kinds of freight and passenger services. 135 were rebuilt in the mid 1980s giving the class a further lease of life, while further major rebuilds have taken place since privatisation. Many are still hard at work today painted in the colours of a wide range of different operators including Network Rail and a plethora of private freight and passenger companies, such as Colas Rail, Direct Rail Services, Europhoenix, HN Rail and WCRC.
Common Features:
- Highly detailed OO scale model, 1:76.2
- Heavy die-cast metal chassis
- Accurate tumbleholme, nose, cab roof and cantrail curves taken from 3D Laser scan and extensive surveys
- Timeframe specific details, including but not limited to;
- Bogies (Fabricated and three variations of Cast)
- Fuel tanks (As built and with later smooth-sided long range fuel tank)
- Early Class 37/0 features frost grille, boiler filler panel and access steps
- Early Class 37/0 features illuminated split headcode displays with a selection of different four-character headcodes
- Class 37/6 have operational WIPAC light clusters and top headlight and numerous different nose slides all including multiple working socket
- Three styles of buffer: large round Oleo, oval and squared oval
- Three styles of nose grilles: as built, refurbished ‘split’ and refurbished ‘single piece’
- Boiler exhaust, and two styles of plated boiler panel
- With or without bufferbeam skirts
- With or without cab roof vents and bodyside windows
- Nose and roof aerials and antennas (where applicable)
- Three styles of windscreen: standard, centre toughened and all toughened
- Three styles of cab interior: as built, refurbished and modern DRS locos
- Four bufferbeam variations with different piping configurations
- Door kickplates where applicable
- Multiple body and nose slides to accurately represent almost every member of the class, including three variations of cantrail grille: early EE (for D6700-D6704), later EE and RSH
- Four roof styles: Original double riveted, single riveted, welded and welded with antennas
- Separately applied etched metal and high fidelity plastic detail parts, including grab handles, aerials, steps, wipers, nameplates, crests and more.
- Etched metal door kickplates (where applicable), ‘frost’ grille (where applicable) & super fine etched metal roof grille
- Scale width wire handrails
- Turned brass roof-mounted horns on centre headcode examples
- Full underbody tank detail with brackets and pipework
- Bogies feature separate footsteps, etched footsteps, brake cylinders, speed recorder, end brake rigging and very fine brake chain
- Brake blocks on trucks (bogies) in line with wheels (can be moved for EM/P4 gauges)
- Numerous other locomotive-specific details yet to be revealed!
- RP25-110 profile OO gauge wheels with fine scale ‘drop in’ EM (18.2mm gauge) and P4 (18.83mm gauge) wheels available separately
- Accurate high-fidelity miniature snowploughs
- Fully sprung metal buffers, extra-fine factory-installed pipework and screw couplings
- Correct height mini-tension-lock couplers with NEM socket as well as a fully detailed bufferbeam
- Provided DCC ready [21Pin MTX Socket] or Factory DCC Sound Fitted [ESU LokSound 5]
- Every model includes PowerPack / Backup Power Capacitor Bank for up to ten seconds of power free running, flicker free lighting and continuous sound
- DCC Sound Versions include;
- ESU LokSound V5 DCC Chip
- Customised Dual-Speaker Technology with;
- Large EM2 Style Bass Speaker
- Smaller 'iphone' style cube for higher frequencies
- High Performance traction, to include;
- High-quality five-pole motor with two flywheels
- Metal Helical Gear box for maximum performance and slow speed running
- Gearing arranged so locomotive can achieve a scale top speed of 100 mph (160 km/h)
- DCC ready with PowerPack Super-capacitor for uninterrupted power and super low speed running
- All wheel drive and all wheel pickup
- Fully detailed Lighting Pack, including:
- Directional lighting on DC and DCC
- Fully functional Headlights per prototype
- Engine Bay Lighting (with visible Prime Mover)
- WIPAC light clusters where appropriate with day and night-time settings
- Separately switched cab lighting and illuminated, details driver’s console, auto off on movement
- Switchable red tail lights
- RP25-110 wheels OO wheels with provision for re-gauging to p4 and EM gauge
- Minimum Radius 438mm (2nd Radius Set-track)
